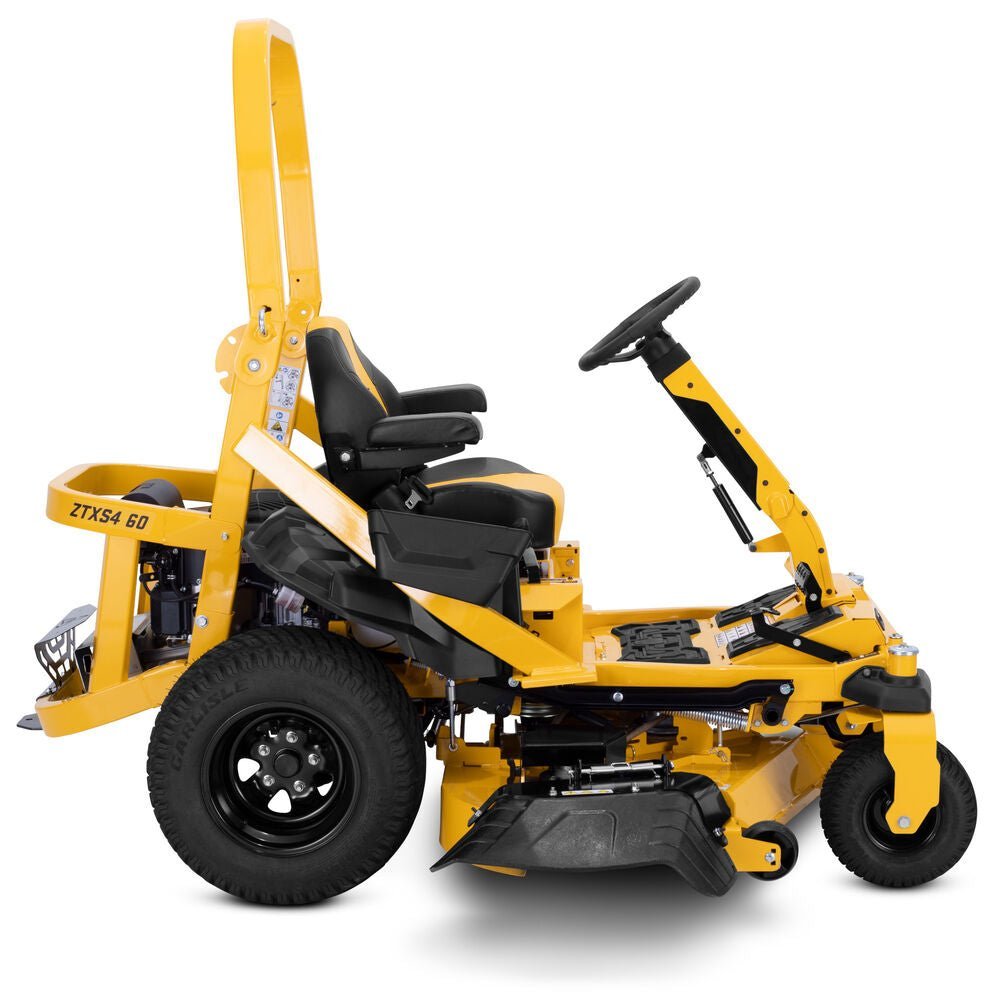

ZTXS4 60

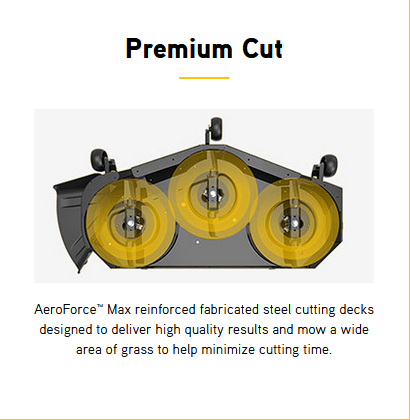

The Cub Cadet® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.

Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
A 24 HP* Kohler Pro 7000 Series KT735 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.

A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Engine

Engine Brand: Kohler®
Engine Model: Pro 7000 series
Engine Model Number: ZT745
Engine Displacement: 747cc
Engine Output: 26HP
Starter Type: Electric
Fuel Tank Capacity: 5.5 gal. US
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2 qt US
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: Yes
Governor: Mechanical
Choke: Choke-a-matic
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3100
Forward Speed: 8.5 MPH
Reverse Speed: 3.5 MPH
Drive System: Hydrostatic

Cutting Deck

Deck Cutting Width: 60 in
Deck Wash: No
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Engagement (PTO): Electric
Deck Construction: Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1″ – 4.75″
Anti-Scalping: Three gauge wheels
Deck Positions: 17

Warranty

Warranty: 4-year 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: 4-year 800 hours

Chassis

Frame: 1.5″ x 3″ tubular steel
Turning Radius: 0°
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Brakes: Disc

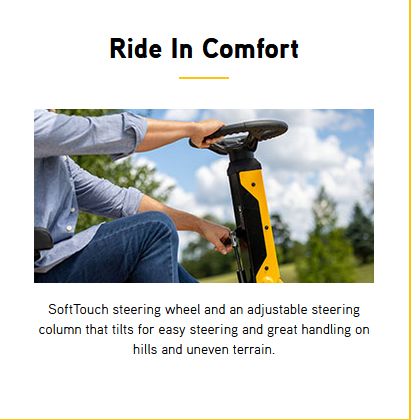

Steering Control: Steering Wheel

Comfort

Seat Type: 20″ high back
Armrests: Yes
Seat Adjustment: Lever

Wheels

Rear Tires: 22″x 12″-12″
Front Tires: 13″x 6.5″-6″
Tire Tread: Turf Master / Multi Trac

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s): Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Foot Controlled
Model Number: 47RSCAB8A10

Specifications

Series Ultima Series™ ZTXS

AIR FILTER: 32 883 13-S1 OR 490-200-K064
OIL FILTER: 52 050 02-S
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 14-S
PTO BELT: 754P06094
DECK BELT:
DRIVE BELT: 954-04317A
TRANS FILTER: HG-52114P
BLADES: 742P05516
XTREME BLADES:
IGNITION KEY: 925-1745A
ENGINE OIL: 25 367 65-S
